Product description, Technical parameters and configuration

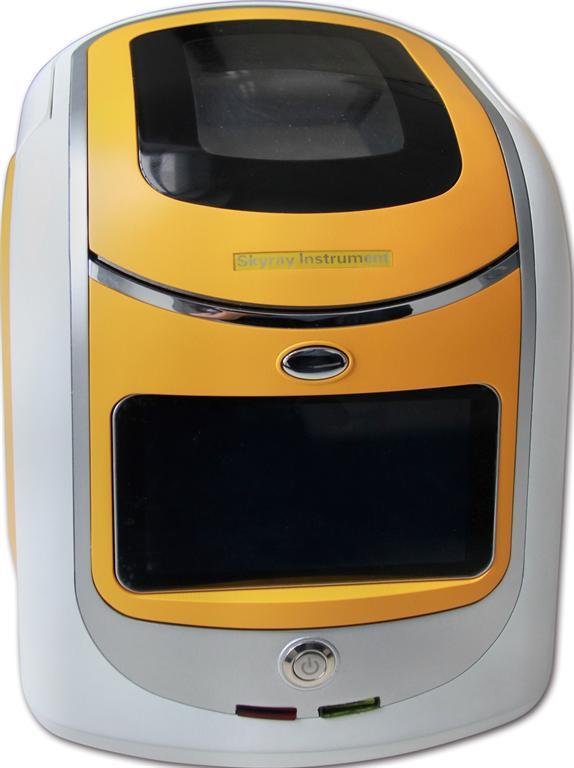

The unique portable Cube 100 XRF spectrometer made by Skyray Instrument is designed to meet the requirements for the measurement of gold, silver, platinum and elements inside precious metals, as well as the content of the inner wall of jewelry. Using high resolution SDD or Si-pin detector, Cube 100 can analyze Au, Ag, Pt, Pd, Zn, Ni, Ir and other elements. At the same time, it can test Cd, Pb and other hazardous substances. Test results fully meet the requirements of the National Standard 18043-2013 GB/T.
The compact design of Cube 100 makes precious metal testing much easier with the features of small in size, light in weight, easy to carry and one-key intelligent operation in testing.
Outstanding Features:
1.Easy to carry:
The compact and ingenious design of Cube 100 makes it easy to carry with a handle and 5kg in net weight only.
2.Universal testing stand:
The unique testing stand design makes the testing of content of the inner wall of jewelry and widget samples, mixed metal accessories easily.
3.Built-in camera:
The built-in camera positions testing spot precisely. The sample testing spot can be saved in testing report.
4.Collimator combination:
The combination of three different sizes of collimators including 1mm, 2mm and 4mm and big testing chamber caters to the needs of different spot size testing requests.
5.FP software for outstanding analytical flexibility
Auto match of different working curves under FP mode supports one key intelligent testing.
Technical Specifications:
1.Measurable elements: S to U
2.Sample types: solid, powder
3.Element analysis range：1ppm—99.99%
4.Simultaneous analysis capability of dozens of elements:
5.Multi-optional analysis and identification models
6.Mutually independent matrix effect correction model
7.Multivariable nonlinear regression program
8.Analysis Accuracy：0.05％ (content ≥96%)
9.Ambient temperature:15℃—30℃
10.Operation Humidity：≤70%
11.Power input：220V AC
12.Sample chamber dimension：150*150*100mm
13.Instrument dimension：212*258*258mm
14.Net weight：5kg
Configurations:
1、Si-pin Detector or SDD detector (optional)
2、X ray tube: 40kV、100uA
3、Collimator: Auto switch of Ф1mm、Ф2mm & Ф4mm
4、Filter types: Al, Ti, Cu
5、Bottom light system
6、High definition & resolution 5 inch PDA.
Flexible & easy operation of software installed in the Windows CE Microsoft system, which
supports for PDA system upgrades and software upgrades efficiently.
7、Light indications: power and radiation lights.
8、Protection system: High voltage auto switch-off while cover is opened
9、Samples are placed on universal test stand. Samples can be placed arbitrarily.
10、Report output: WiFi printer (optional)
11、Safety packing box: Size: 400*300*350mm Weight: 4.5kg
Application Fields:
Element analysis of gold, platinum, silver and other precious metals in various kinds of ornaments.
