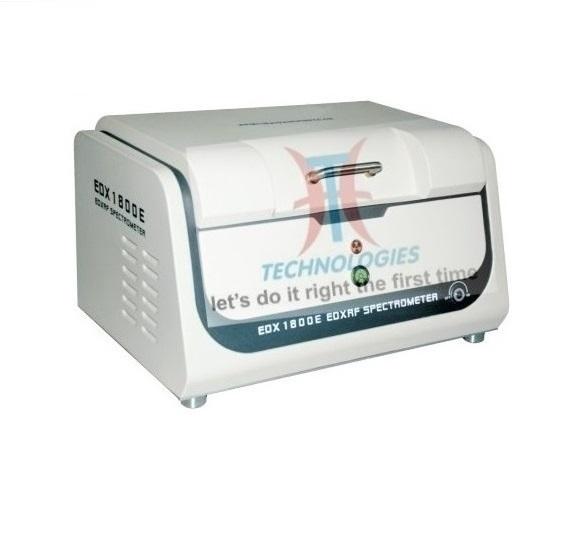

EDX1800E Type:EDX1800E

EDX1800E Type:EDX1800E

  • NH00444
Giá: Liên hệ



Product description, Technical parameters and configuration

According to the wide application of EDX1800B in various fields, EDX1800BS is specially designed for higher performance and higher safety grades.
New generational high-voltage power supply and big power X-ray light tube greatly improve the reliability and testing efficiency of the instrument.

Performance Advantages

Bottom-lighting: convenient for testing samples with various shapes
High resolution Silicon Drift Detector(SDD), providing precise testing
New generational high-voltage supply and big power (100W) X-ray light tube, greatly improving stability and testing efficiency
Precise manual movable platform: convenient for locating testing position
Collimator & Filter: automatic switch

Application Fields

RoHS testing
Mineral & alloy (Cooper, stainless steel, etc.) content testing
Metal plating thickness testing
Plating solution and coating content testing
Gold, platinum, silver and other precious metals or various ornaments content testing

Configurations & Specifications

Measurement principle:EDXRF (Energy Dispersive X-ray Fluorescence)
Applicable sample type:Solid, liquid, powder
Measurement range:S to U
Analytical range : ppm to 99.99%
Resolution:140±5eV
Testing time cost:60-100 seconds
Precision:0.05% (content≥96%)
Dimension:550mm×410mm×320mm
Weight : 45kg

Key Components

X-ray tube:Tube voltage 5kV-50kV,Tube current 1~1000μA
High voltage generator : Maximum voltage 50kV
Detector :SDD
Filter & Collimator: Automatic switch
Sample Chamber
Sample chamber dimensions:439mm×300mm×50mm
Number of sample-cups:2
Sample observation:CMOS HD camera

Installation Requirements

Temperature:15℃~30℃
Humidity:35%~70%
Power input:220V
